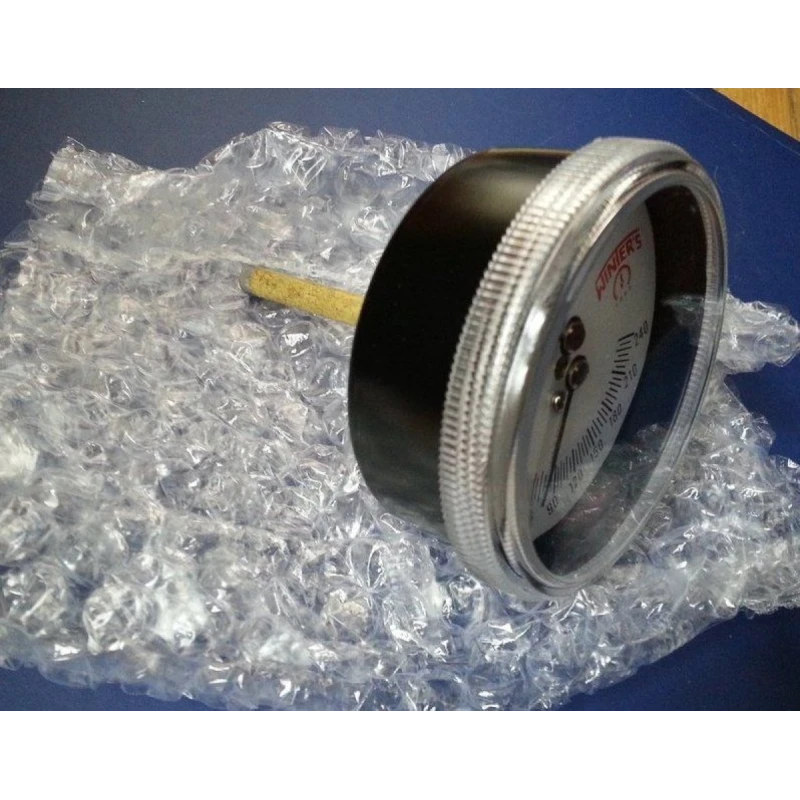

Winter's Tridicator 30-240F, 0-75psi, 2-1/2" dial

part no. 404

Condition: New old stock

1/4"NPT
Back Pressure range: 0-75 psi
Temperature range: 30-240 °F

http://winters.com/product/ttd-tridicator/

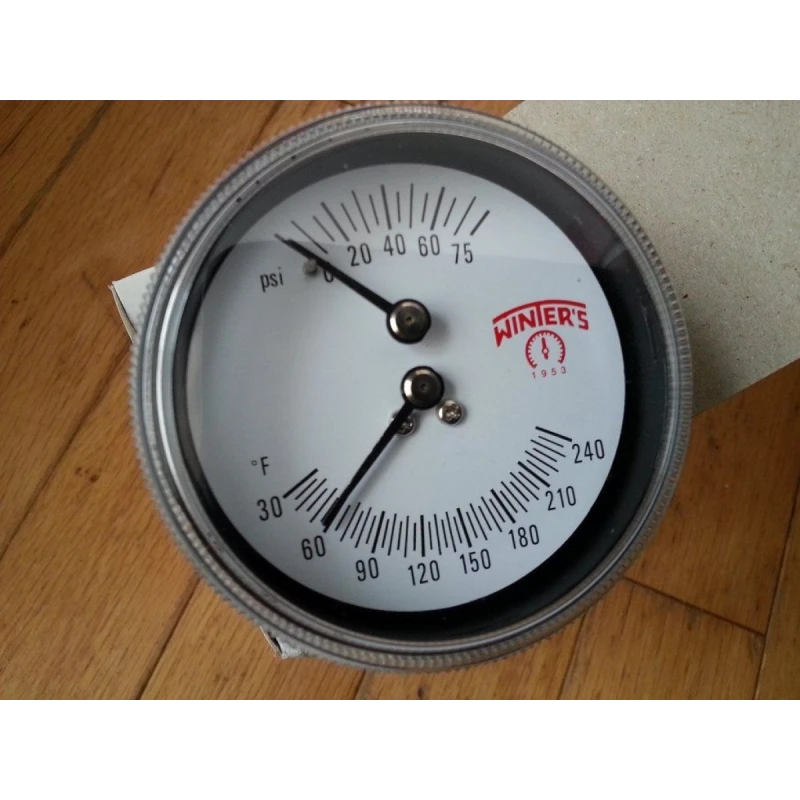

Dial: 2.5” (63mm) aluminum, painted white
Case: Steel, painted black
Lens: 2.5″ (63mm): Acrylic, threaded

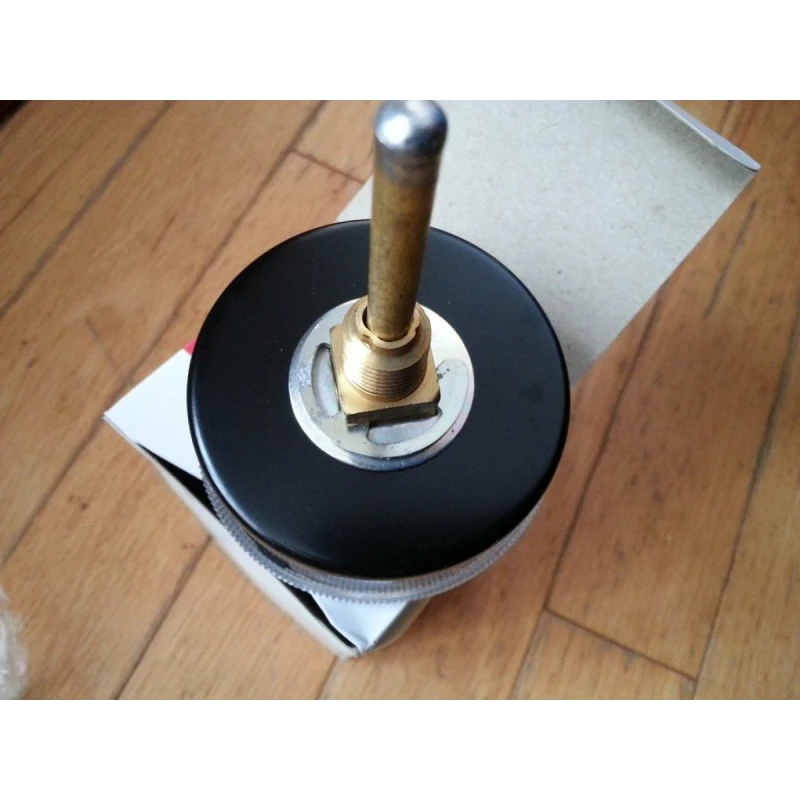

Stem: Brass
Socket: Brass
Tube: Phosphor bronze
Movement: Brass and phosphor bronze
Sensing Element
  Temperature: Bi-metallic coil
  Pressure: Bourdon tube
Pointer: Aluminum, anodized black
Welding: Tin-alloy solder
Pressure Limit: 75% of full scale range
Ambient Temperature: 23°F to 122°F (-5°C to 50°C)
Process Temperature 75% of full scale range
Accuracy
   Pressure: ±3-2-3%
   Temperature: ±3% of full scale
Enclosure Rating IP50

Quantity available: 17
