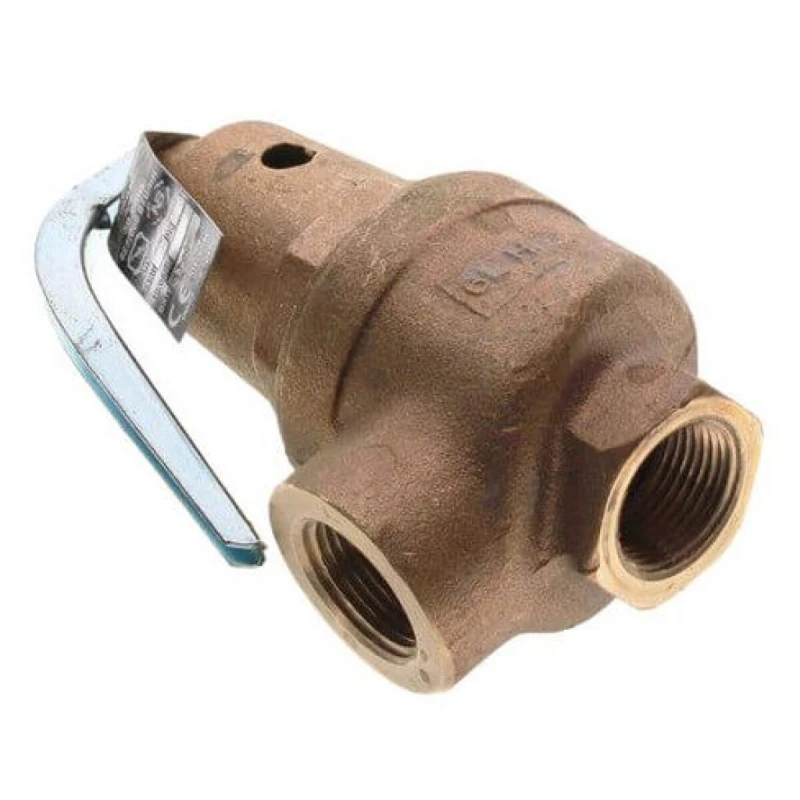

New Apollo 1060610 1-1-4 Safety Relief Valve, 50 psig

Mfg/brand: Apollo
Model/part: 1060610

Condition: New

Series: 10-600
Body Material: Bronze
End Style: FNPT
Nominal Size: 1-1/4 in
Pressure Rating: 50 psig
Temperature Rating: 250 deg F
Actuator Type: Lever Handle
Dimensions: 5.1 in W x 8.4 in H
Media: Water
Set Pressure: 50 psig
Weight: 7.95 lbs
Standards Approvals: ASTM B584 Valve Body,ASME Section IV Certified Capacity,CE Listed,CRN 0G8547.5C,Pressure Equipment Directive 2014/68/EU (PED)
High BTU capacity rating: 3,384,000 BTU/HR
Silicone seat Fabric reinforced molded diaphragm isolates spring from water at all times Bronze body and spring cage Corrosion resistant construction Diaphragm isolated spring chamber Alloy steel plated spring
